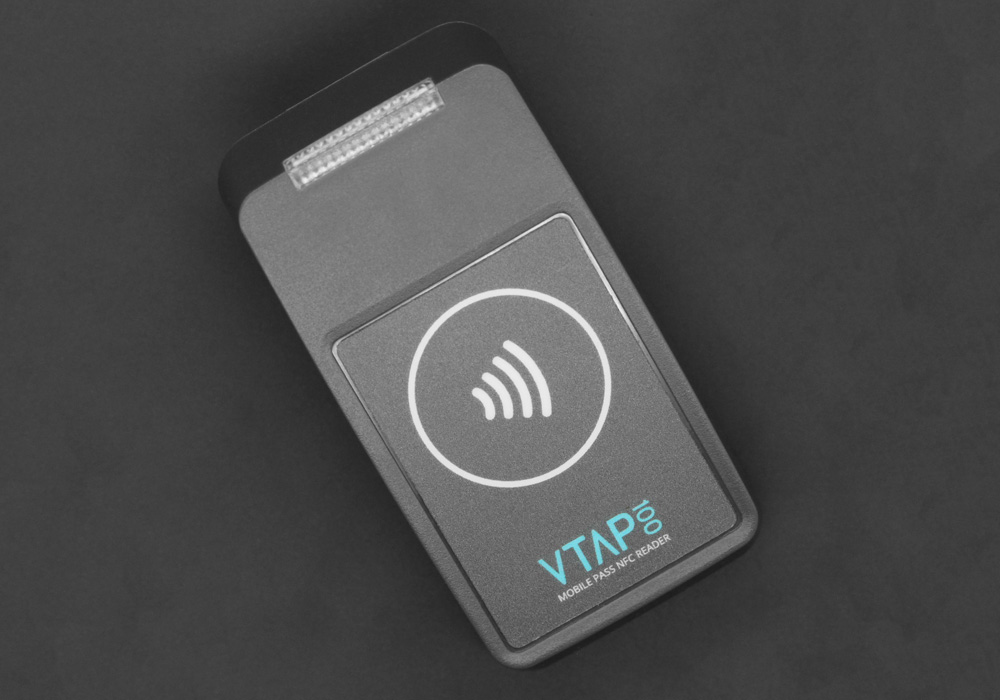

VTAP boxed wallet readers | versatile and secure

The VTAP boxed wallet readers for mobile wallet passes offers unrivalled flexibility and security. They are designed by Dot Origin to streamline and enhance user interaction – with just a quick tap of an iPhone or Android device – while also supporting a wide range of physical NFC and RFID credentials too.

Robust enclosures

Suitable for counter-top, turnstile and wall mounting.

Powerful connectivity

USB + RS-232 serial, Wiegand, RS-485 and Wi-Fi options.

Strong security

Secure enclave for multiple encryption keys.

The benefits of VTAP NFC pass readers

✔ Users need only the Apple Wallet or Google Wallet app to store NFC digital passes

✔ VTAP boxed wallet readers automatically select the right pass, read and decrypt it, and send pass data to the connected system

✔ Fully certified by Apple for VAS and Google for Smart Tap

✔ Also compatible with MIFARE, DESFire and NFC Forum cards and tags

The preeminent solutions for reading digital NFC passes from Apple and Google wallets – VTAP readers are deployed across thousands of facilities worldwide, in fitness centers, membership venues, sports and entertainment arenas, as well as retail and hospitality sites.

Quick deployment

Easy to retrofit to existing systems, and quick to integrate into new platforms – providing a smooth transition to an Apple and Google digital wallet pass experience.

VTAP readers have been designed specifically for mobile pass applications, but also read popular contactless NFC and RFID cards and tags – supporting mixed media environments and easing the migration away from legacy plastic cards.

Configurable to selectively extract and transfer pass data within existing system formats.

QR/barcode code scanner emulation.

Easy management

No SDK required for configuration and management. The file-based approach to VTAP reader configuration is platform independent and requires no drivers or dedicated software. Simply copy configuration, firmware, and private key files (in standard file formats) to the reader to update.

Operating parameter configuration can be done via either USB or serial host interface. Serial file transfers use the ZModem protocol, with active (send on tap) and passive (command/response) interface options.

The flexible and intuitive settings can be edited manually or programmatically, and real time commands can be sent. Settings include support for the use of multiple pass profiles and private keys, as well as tailored feedback to users via RGB LEDs and/or a buzzer.

Strong security

Designed with security in mind from the outset.

Protected merchant private keys. It is not possible to read back the keys used to decrypt pass data once they have been loaded, although they can be updated easily by reloading.

Reader firmware updates can use an encrypted update file. All configuration data can be password protected. Reset to factory defaults, if needed, clears all sensitive data.

MIFARE secure sector and DESFire secure file reading is also implemented to support migration from legacy systems.

VTAP series of boxed NFC pass readers

VTAP100 Desktop USB Reader

Form factor / options

Compact desktop case
Can be reconfigured for wall mounting
Optional custom branded front label

Connectivity

Captive USB cable

Part numbers / downloads

Standard configuration: VTAP100-USB-CC

VTAP100 USB technical datasheet

VTAP100 Wiegand Reader

Form factor

Square and compact wall/mullion mountable case options
Optional custom branded front label
Wall/mullion version designed for outdoor use

Connectivity

Removable Wiegand connector with 8-16V power supply, Wiegand data, buzzer and LED
Internal micro-USB socket for configuration/programming

Part numbers / downloads

Square case (indoor-only): VTAP100-PAC-W-SQ
Compact case (indoor/outdoor): VTAP100-PAC-W-CC
VTAP100 Wiegand technical datasheet

VTAP100 RS-485 Reader

Form factor / options

Compact wall/mullion mountable case
Optional custom branded front label
Designed for outdoor use

Connectivity

Removable RS-485 connector with 8-16V power supply and serial data
Internal micro-USB socket for configuration/programming

Part numbers / downloads

Standard configuration: VTAP100-PAC-485-CC

VTAP100-PAC-485 technical datasheet

VTAP100 PRO Cloud-connected Reader

Wi-Fi connected, with VTAP Cloud service

Form factor / options

Compact desktop case
Can be reconfigured for wall mounting
Optional custom branded front label

Connectivity

Wi-Fi (2.4GHz, WPA to network/internet)
Captive USB cable for 5V power and optional data output

Part numbers / downloads

Standard configuration: VTAP100-PRO-BW-CC

VTAP100 PRO technical datasheet
